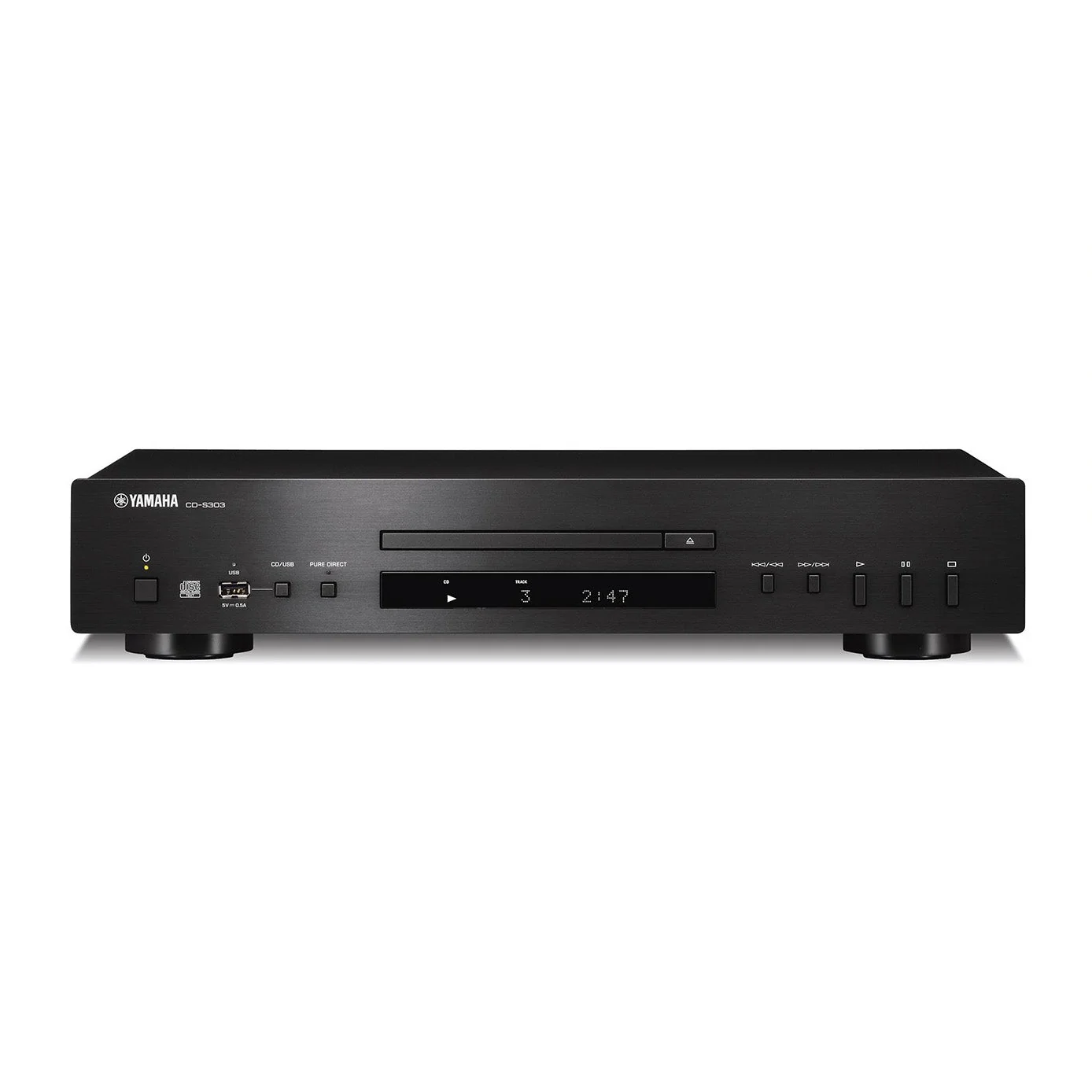

Yamaha: CD-S303 CD Player

📌 LAB POINTS

• hi-fi CD player designed for pure, accurate Red Book CD-DA playback
• plays CD, CD-R/RW discs and supports MP3/WMA files from CD or USB
• Pure Direct mode minimizes noise for cleaner audio reproduction
• high-performance 192 kHz / 24-bit Burr-Brown DAC for detailed, natural sound
• optimized digital and analog circuit layout for reduced signal interference
• USB port for playback of MP3, WMA, LPCM, AAC, and FLAC files

• aluminum front panel

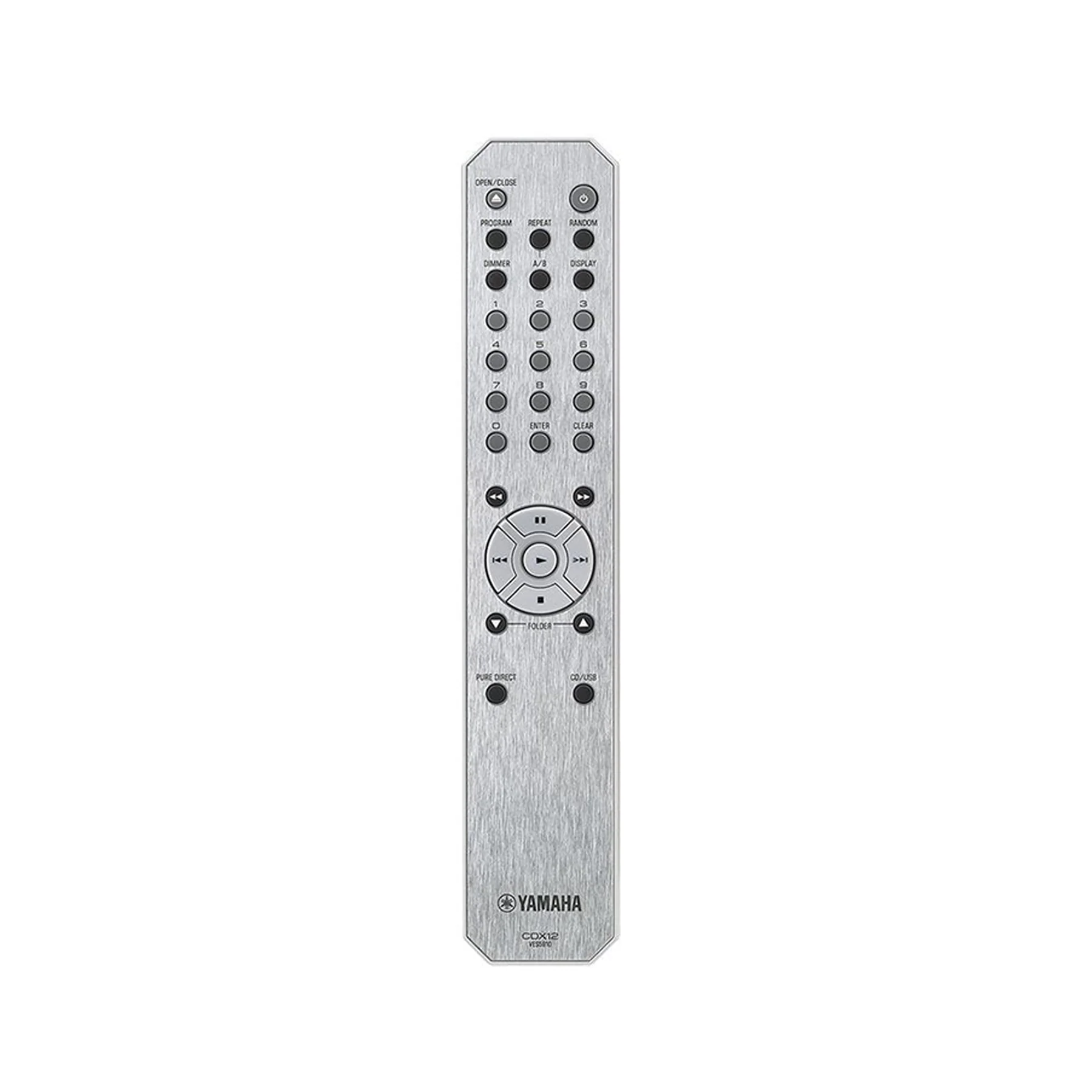

• includes remote control

"Yamaha technicians devoted a great deal of time and effort to designing the overall interior layout of parts and circuit boards, a factor that significantly affects sound quality. As a result, the power supplies for the motor drive, display and USB sections, as well as the digital and analog sections, are individually isolated, eliminating electromagnetic interference among them. To achieve ideal weight balance for stable performance, the drive mechanism is located in the center of the unit." - Yamaha

🔑 KEY FEATURES

• DAC: Burr-Brown 192 kHz / 24-bit
• compatible formats: CD, CD-R/RW, MP3, WMA (via CD or USB)

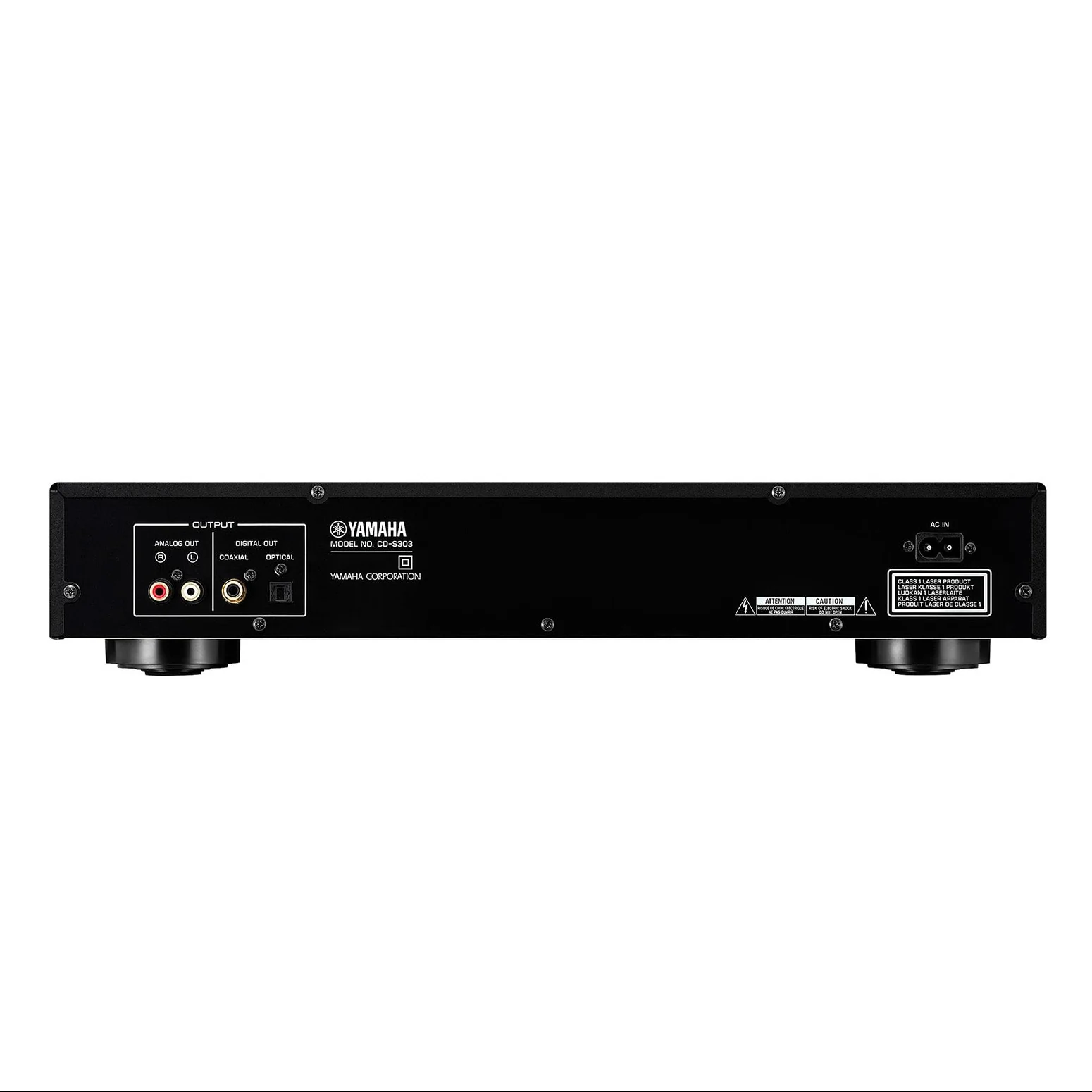

• outputs: RCA analog, optical digital (TOSLINK), coaxial digital (S/PDIF)
• frequency response: 2 Hz - 20,000 Hz (±0.5 dB)
• total harmonic distortion (THD): 0.003% (1 kHz)
• signal-to-noise ratio (SNR): 105 dB
• dynamic range: 96 dB
• dimensions (W × H × D): 17 1/8" × 3 3/8" × 10 1/4" / 435 × 86 × 260 mm
• weight: 7.3 lbs / 3.3 kg

📦 COMES WITH

• remote control
• RCA audio cable
